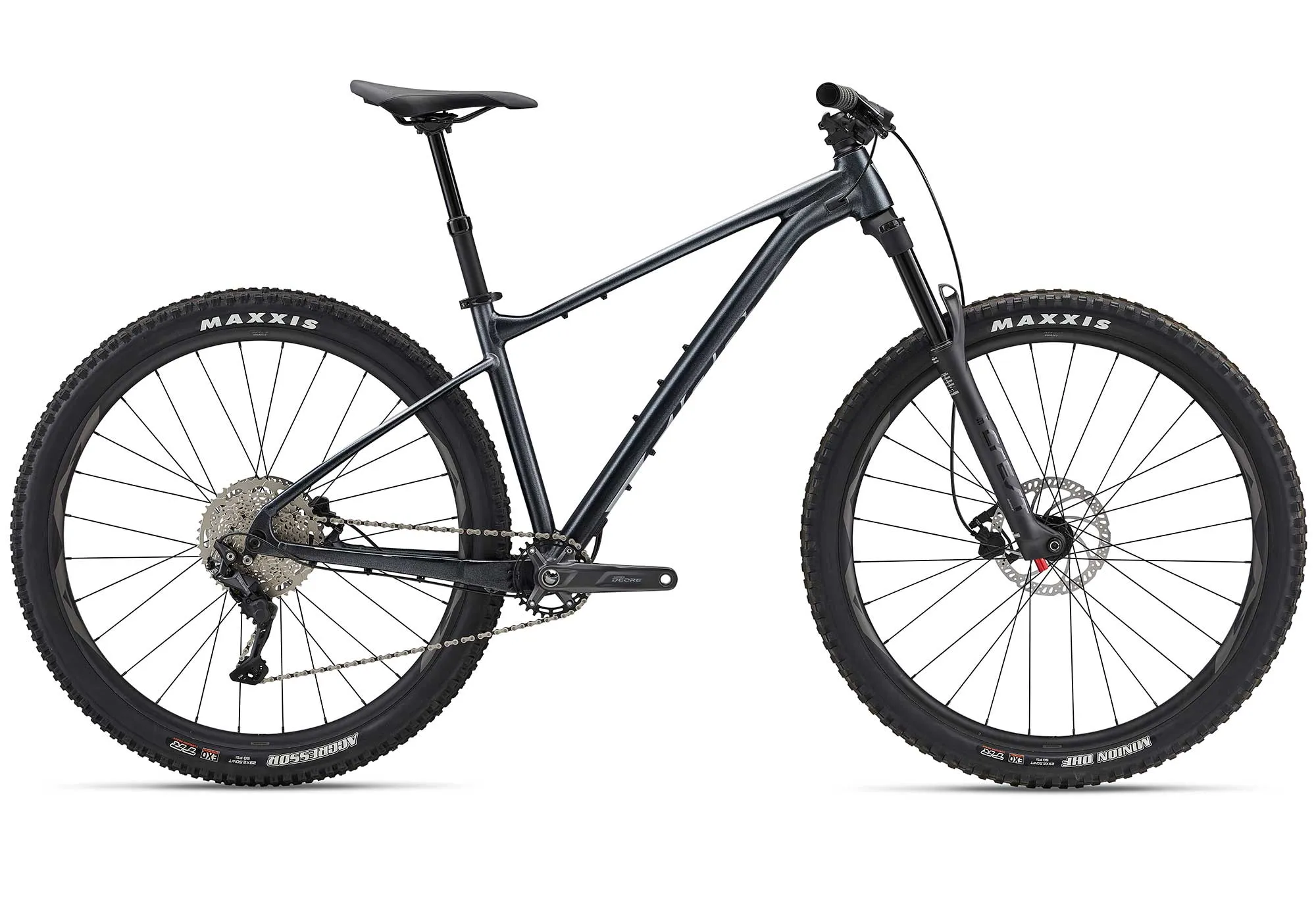

Crank up steep climbs with smooth efficiency. Swoop down singletrack descents with speed and confidence. The 2023 Giant Fathom 29 hardtail delivers a balanced ride on XC terrain.
Built on a lightweight ALUXX SL aluminium frame, Fathom 29 features balanced geometry for a stable ride quality. The frame is optimised for a 130mm suspension fork for smooth control on the descents. An updated Giant WheelSystem comes with tubeless tyres already set up, making it easy to experience added efficiency and control, plus a reduced risk of flats on technical terrain.
- ALUXX Super-light-Grade Aluminium frame
- Giant Crest 34 RCL forks with 130mm travel and lockout for pedalling efficiency
- Giant Contact Switch dropper seat post to adjust seat height on-the-fly
- Shimano Deore, 1x10 speed drivetrain - reknown for its durability
- Tektro hydraulic disc brakes with large 180mm rotors for impressive stopping power and fade resistance
SIZING: (Rider height)
Medium: 171-180cm
Large: 179-188cm
X-Large: 187-198cm
BIKE SPECSFRAME
ALUXX SL-Grade Aluminium, 12x148mm thru-axle
FORK
Giant Crest 34 RCL, 130mm travel, 44mm offset, Boost 15x110
FRONT HUB
Alloy, sealed with quick release
REAR HUB
Alloy, sealed with quick release
SPOKES
Stainless steel, 14g
RIMS
Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
INNER TUBES
Presta valve
FRONT TYRE
Maxxis Minion DHF, 29x2.5 WT, EXO/TR
REAR TYRE
Maxxis Aggressor, 29x2.5 WT, foldable, EXO/T
CRANKSET
Shimano Deore, 30t
CHAINRINGS
30T
BOTTOM BRACKET
Shimano, threaded
SHIFT LEVERS
Shimano Deore M-4100, 1x10
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano Deore M-5120
CASSETTE
Shimano Deore M4100, 11x46 10 speed
CHAIN
KMC X10
FRONT BRAKE
Tektro HDM 275, hydraulic, Tektro rotors 180mm
REAR BRAKE
Tektro HDM 275, hydraulic, Tektro rotors 180mm
HANDLEBARS
Giant Contact TR35, 35mm
GRIPS
Giant Sole-O
STEM
Giant Contact SL 35
SADDLE
Giant Romero
SEATPOST
Giant Contact Switch dropper, remote
SEAT BINDER
Alloy clamp
PEDALS
N/A
EXTRAS
Tubeless prepared, 2.5" max tyre size, 32t max chainring size
|
